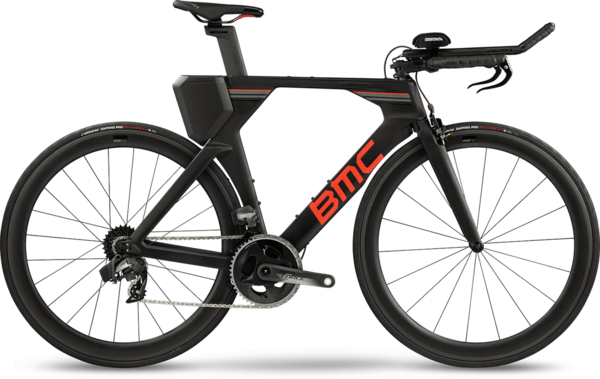

BMC Timemachine ONE

BMC Timemachine ONE
  • Color: Carbon/Red/Grey
$3,799.99 - $5,299.00
$5,299.00
Color: Carbon/Red/Grey
Size: Select size
Please select options Unavailable
This item is not permitted to be shipped, however it can be purchased online and picked up.

Details

Years of studying the needs of multi-sport athletes, combined with repeated aerodynamic refinements, have made the Timemachine the benchmark for triathlon-specific equipment. With superior tube shaping, maximum component integration, and an extensive rider positioning system, the Timemachine is tailor-made for triathletes.

VMAX TECHNOLOGY
- p2p x subA: The formula for high-performance cycling – Position-to-Perform maximizes the adjustability of your riding position while SubA innovation creates an incredibly fast frame profile.

DUAL-MOUNT SEATPOST
- Capable of creating 71°- 81° effective seat tube angles

SUBA AERO HINGE-FORK
- Fully integrated 3rd generation hinge-fork ensures a lean frontal profile, seamlessly integrated brake calipers, and a revolutionary, new cockpit mounting system that promotes both form and function.

CALIPER COVERS
- The Integrated covers optimize the airflow around calipers and rotors improving aerodynamic performance on the Teammachine 01 Disc.

INTEGRATED FUEL OPTIONS
- A rear-mount equipment storage box, toptube fuel box mounts, and downtube dual-mount bottle cage options add up to a dedicated triathlon weapon.

Sizes:
SmallSmall/MediumMedium/LargeLarge
Rider Height CM <170 172-180 178-188 186-196
Wheelbase MM 964 967 1008 1038
Seat Angle 71.5 - 80.8 71.5 - 80.8 71.5 - 80.8 71.5 - 80.8
Stack MM 480 515 515 556
Trail MM 60 60 60 60
Rear Center MM 393-404 393-404 393-404 393-404
Reach MM 393 377 418 442
Head Tube MM 97 111 111 153
Head Angle 71.5 71.5 71.5 71.5
BB Drop MM 58 68 68 68
Stem Length MM 90 90 100 110
Saddle Height Range 630 - 780 660 - 850 660 - 850 700 - 880
Seat Tube MM 495 550 550 592
Stem Angle ±8 ±8 ±8 ±8
Post Offset MM 27/ 9 / -9 / -27 27/ 9 / -9 / -27 27/ 9 / -9 / -27 27/ 9 / -9 / -27
Crank Length MM 165 170 170 172.5
Fork Rake MM 45 45 45 45
Front Center MM 580 578 619 649
Fork Length MM 374 374 374 374
Bar Width MM 400 420 420 420
Bar Reach MM 160 160 160 160

Specs

Frame Timemachine Carbon with P2P positioning System, PF86 bottom bracket, Rear Storage Box, Sliding Dropouts
Fork Timemachine Carbon
Rims CRV-500 Carbon
Hubs CRV-500
Tires Vittoria Zaffiro Pro, 25mm
Bottom Bracket PF86
Crankset SRAM FORCE AXS 48/35T
Shifters SRAM FORCE eTap AXS HRD
Front Derailleur SRAM FORCE eTap AXS
Rear Derailleur SRAM FORCE eTap AXS
Cassette/Freewheel SRAM FORCE XG-1270, 10-28T
Chain SRAM FORCE 12 speed
Brakes SRAM FORCE eTap AXS HRD
Handlebars Profile WING 10a Basebar / Sonic Ergo 35A Aerobar
Stem BMC RSM01
Seatpost BMC P2P Aero Post | 62mm offset adjustment, P2P Dual-Mount Aeropost Configuration (Triathlon & Time Trial)
Saddle Selle Italia Watt
Pedals Sold separately
Accessories & Extras Rear Storage Box

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Carbon/Red/Grey / Small 7630027860795 30000318
Carbon/Red/Grey / Small/Medium 7630027860801 30000319
Carbon/Red/Grey / Medium/Large 7630027860818 30000320 210000151944
Carbon/Red/Grey / Large 7630027860825 30000321
